ProLiant BL20p Blade Server Series

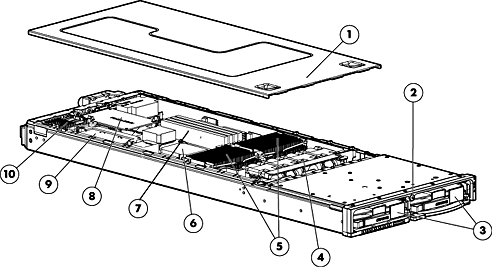

Overview

1. Access panel
2. Power On/Standby button
3. Support for up to two U320 SCSI hard drives
4. Fan Assembly for chassis cooling
5. Up to 2 Intel Xeon processors with 800 MHz FSB

6. Smart Array 6i Controller
7. Four (4) PC2-3200 DDR2 Memory slots
8. Fibre-channel mezzanine card (Optional)
9. Battery-backed write cache (Optional)
10. Power converter modules

Main Features

• Performance dual processor server blade designed with enterprise availability
• HP ProLiant BL20p Generation 3 server blade includes:
  • Up to two 64-bit Intel Xeon processors: 2.8GHz, 3.0GHz, 3.2 GHz, 3.4 GHz, 3.6 GHz or 3.8 GHz with 1MB or 2MB cache depending on processor
  • Intel E7520 Chipset
  • 1024-MB or 2048-MB PC2-3200 Registered ECC 400MHz DDR2 memory standard, (2 x 1 Interleaved Memory), expandable to 8 GB maximum
  • Four NC7781 PCI-X Gigabit NICs (embedded)
  • One additional 10/100 NIC dedicated to iLO Management
  • Smart Array 6i (integrated on system board Controller with optional battery-backed write cache)
  • Ultra320 SCSI Drive Cage standard; supports up to two 1" Ultra320 SCSI hot plug hard drives
• New Power Regulator for ProLiant delivering server level, policy based power management with industry leading energy efficiency and savings on system power and cooling costs.
• Integrated Lights-Out featuring new firmware v 1.70 with support for Power Regulator for ProLiant and introducing support for the draft DMTF System Management Architecture for Server Hardware Command Line Protocol standard
• Dual-Port Fibre Channel Adapter (2-Gb) option for SAN connectivity
• HP ProLiant BL20p server blade plugs vertically into 6U enclosure
• I/O cable with two USB ports, one video port, one iLO port and kernel debug port. The cable was specifically designed to aid in initial server image deployment.
• Integrated Access Tool for blade management and enhanced server blade documentation including Best Practices and Common Procedures guides
• Protected by HP Services and a worldwide network of resellers and service providers. Three-year parts, 3 Year Labour and 3 Year on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives
