ProLiant BL25p Blade Server Series

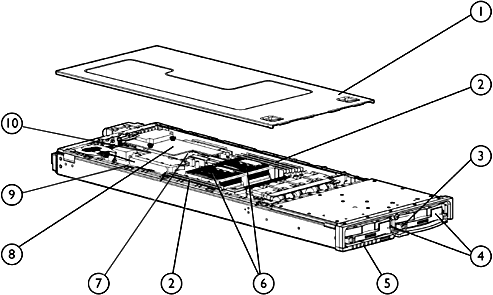

Overview

1. Access panel
2. Memory banks 1 and 2 (4 DIMM slots per bank, 8 total DIMM slots)
3. Power On/Standby Button
4. FUp to two Ultra320 hot-plug hard disk drives (optional)
5. Front panel LEDs

6. Up to two single- or dual-core AMD® Opteron™ 200 series processors
7. PCI-X Gigabit NIC Mezzanine Card (contains two NC7781 single port Gigabit NICs )
8. Dual port Fibre Channel Adapter (optional)
9. Smart Array 6i Controller
10. PSmart Array 6i Battery-Backed Write Cache Enabler (optional)

Main Features

• Performance dual processor server blade designed with enterprise availability and scalability to run existing 32-bit applications, while providing a simplified migration path to 64-bit computing.
• AMD Opteron™ 200 series single-core and dual-core processors (dual capability)
  • Dual-Core: Models 280 (2.4GHz), 275 (2.2GHz), 270 (2.0GHz), and 265 (1.8GHz)
  • Single-Core: Models 254 (2.8GHz), 252 (2.6GHz), and 250 (2.4GHz)
• HP ProLiant BL25p Dual Port Fibre Channel Adapter (2-Gb) option for SAN connectivity
• AMD 8131 and 8111 Chipsets
• 1024-MB or 2048-MB PC3200 Registered ECC 400MHz DDR memory, 2 x 1 Interleaved Memory, 8 DIMM slots, expandable to 16 GB (using optional PC3200 DDR) or 32GB max (using optional PC2700 DDR)
• Five total network ports:
  • Four (4) PCI-X Gigabit embedded ports consisting of two (2) NC7781 and one (1) dual NC7782
  • One additional 10/100 NIC dedicated to Integrated Lights-Out (iLO) Management
• HP Smart Array 6i - Integrated (on system board) RAID controller with optional battery-backed write cache
• Ultra320 SCSI Drive Cage (standard) supports up to two 1" Wide Ultra320 hot-plug hard disk drives
• Integrated Lights-Out (iLO) Advanced Management (ASIC on system board)
• Plugs vertically into 6U enclosure, 8 BL25p server blades per enclosure
• Integrated Access Tool for server blade management and enhanced server blade documentation including Best Practices and Common Procedures guides
• Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives
