ProLiant BL30p Blade Server Series

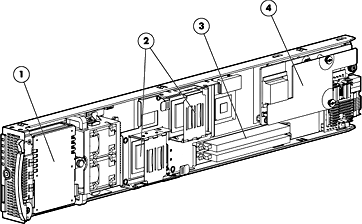

Overview

1. Up to two optional small form factor non-hot pluggable ATA hard disk drives
2. Up to two Intel Xeon processors
3. Up to 4GB of memory (using optional PC2100 DDR SDRAM)
4. Dual-Port Fibre Channel Adapter

Main Features

• High density, dual-processor capable server blade for the ProLiant BL p-Class
• Up to two Intel Xeon 3.2-GHz/533-MHz with 2-MB L3 cache processors
• ServerWorks GC-LE chipset1024-MB PC2100-MHz Registered ECC DDR memory (1 x 1-GB), expandable to 4-GB, flex memory supports interleaved and non-interleaved memory configurations
• Integrated Lights-Out (iLO) Advanced Pack with new static IP bay configuration and HP BladeSystem wizard features
• Two (2) NC7781 PCI-X Gigabit NICs (on a mezzanine card)
• One 10/100T NIC (embedded) dedicated to iLO management
• Supports up to two optional small form factor ATA 60-GB hard drives
• BIOS-Enhanced RAID for Linux enables both primary and secondary hard drives to be bootable
• Dual-Port Fibre Channel Adapter (2-Gb) option for SAN connectivity
• HP ProLiant BL30p server blade plugs vertically into blade sleeve and sleeve plugs into 6U blade enclosure
• Local I/O cable provides two USB ports, one video port, one iLO port and serial port
• Integrated Access Tool for blade management and enhanced server blade documentation including Best Practices and Common Procedures guides
• Up to 96 HP ProLiant BL30p server blades fit in 42U rack in non-redundant power configuration; up to 80 HP ProLiant BL30p server blades fit in 42U in full power redundant configuration
• Protected by HP Services and a worldwide network of resellers and service providers. HP ProLiant BL30p Server Blade Limited Warranty includes 3 year Parts, 1 year Labour, 1-year on-site support. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
