ProLiant BL35p Blade Server Series

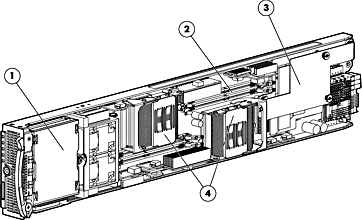

Overview

1. Up to two optional small form factor non-hot pluggable SATA or SAS hard disk drives
2. Up to 16-GB of memory (using optional PC2700 DDR SDRAM)
3. Mezzanine Card: Internal 4 Port SAS HBA (SAS models only) or optional Dual-Port Fibre Channel Adapter
4. Up to two Dual-Core AMD® Opteron™ 200 Series processors

Main Features

• Up to two Dual-Core AMD® Opteron™ 200 Series processors running at 2.2-GHz, 2.0-GHz, and 1.8-GHz with 1-MB L2 cache per core and 1-GHz HyperTransport (lower CPU power rating per processor: 68 watt)
• AMD® Opteron™ 8000 series chipset
• 1024-MB (2 x 512-MB) or 2048-MB (4 x 512-MB) PC3200 DDR 400-MHz memory, expandable to 8-GB (using optional PC3200 DDR SDRAM) or 16-GB max (using optional PC2700 DDR SDRAM)
• Integrated Lights-Out (iLO) Advanced Pack with static IP bay configuration and HP BladeSystem wizard features
• Two (2) NC7781 PCI-X Gigabit NICs (on a mezzanine card)
• One 10/100T NIC (embedded) dedicated to iLO management
• Supports up to two optional small form factor serial attached SCSI (SAS) 72-GB non-hot plug hard drives or two optional small form factor SATA 60-GB non-hot plug hard drives
• Internal 4 Port SAS HBA (on a mezzanine card) supports RAID 0 or 1
• BIOS-Enhanced RAID for Linux enables both primary and secondary hard drives to be bootable
• Dual-Port Fibre Channel Adapter (2-Gb) option for SAN connectivity
• HP ProLiant BL35p server blade plugs vertically into HP BladeSystem p-Class Blade Sleeve; sleeve plugs into 6U blade enclosure
• Local I/O cable provides two USB ports, one video port, one iLO port and serial port
• Integrated Access Tool for blade management and enhanced server blade documentation including Best Practices and Common Procedures guides
• Up to 96 HP ProLiant BL35p server blades fit in 42U rack in non-redundant power configuration; up to 80 HP ProLiant BL35p server blades fit in 42U in full power redundant configuration
• Protected by HP Services and a worldwide network of resellers and service providers. Three-year parts, 1 year labour and 1 year on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
