ProLiant
BL40p Blade Server Series |
|
| |
Overview |
|
| |
|
|
| |

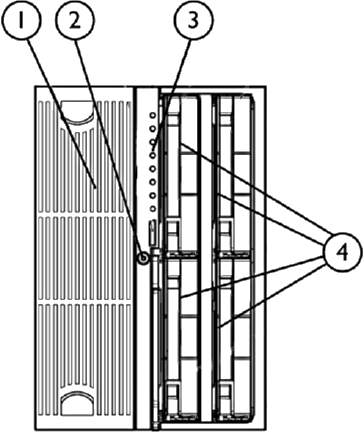

- Removable fan cage - supports six (6) hot plug, redundant fans
- Power On/Standby button
- Front panel LEDs
- Up to four (4) Ultra320 hot plug, hard disk drives (optional)
|
|
| |
|
|
| |

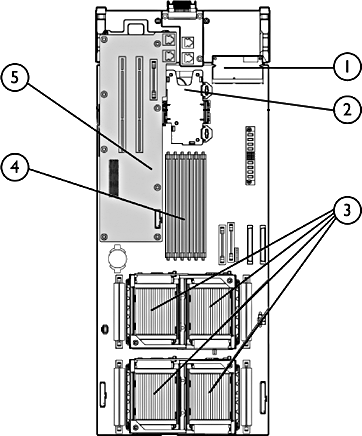

- Smart Array 5i Plus memory module
- Battery-Backed Write Cache Enabler for Smart Array 5i Plus (optional)
- Up to four Intel Xeon MP processors
- Six PC2100 ECC DDR DIMM slots
- PCI-X Mezzanine Board - supports two (2) 64-bit/100MHz PCI-X adapter cards
|
|
| |
Main Features |
|
| |
- Intel Xeon MP 3.0GHz\4MB or 2.2GHz\2MB processor (quad capability)
- ServerWorks GC-LE Chipset
- 512 -MB or 1024 MB of 2-way interleaved PC2100 ECC DDR (2 x 1 Interleaved Memory), expandable to 12 GB
- Advanced Memory Protection with Online Spare
- Five NC7781 PCI-X Gigabit NICs (embedded) with WOL (Wake On LAN) and Preboot eXecution Environment
(PXE)
- One additional 10/100T NIC dedicated to Integrated Lights-Out
(iLO) Management
- Smart Array 5i Plus Controller with battery-backed write cache (integrated on system board) standard on the 3.0GHz/4M model, optional on the 2.2GHz/2M model
- Wide Ultra3 SCSI Drive Cage standard supports up to four 1" hot plug hard drives
- Two PCI-X slots (64b/100MHz capable) for redundant SAN connectivity
- Integrated Lights-Out (iLO) Management (ASIC on motherboard)
- Plugs vertically into p-Class server enclosure
- Up to 12 HP ProLiant BL40p server blades fit in 42U rack
- Protected by HP Services and a worldwide network of resellers and service providers. HP ProLiant BL40p Server Blade Limited Warranty includes 3 year Parts, 1 year Labour, 1-year on-site support. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
|
|
| |
