ProLiant BL45p Blade Server Series

Overview

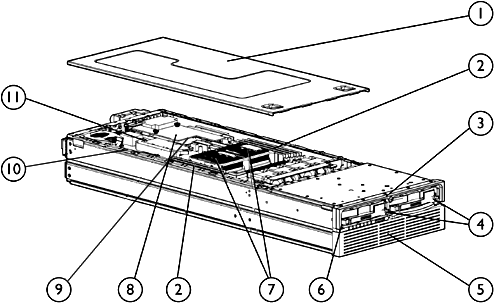

1. Access Panel
2. Memory banks 1 and 2 (4 DIMM slots per bank, 8 total DIMM slots) for Processors 1 and 2 on primary side
3. Power On/Standby button
4. Up to two Ultra320 hot-plug hard disk drives (optional)
5. Secondary Side - ProLiant BL45p
6. Front panel LEDs

7. Up to two single- or dual-core AMD® Opteron™ 800 series processors on primary side
8. Dual port Fibre Channel Adapter (optional)
9. PCI-X Gigabit NIC Mezzanine Card (contains two NC7781 single port Gigabit NICs)
10. Smart Array 6i Controller
11. Smart Array 6i Batter-Backed Write Cache Enabler (optional)

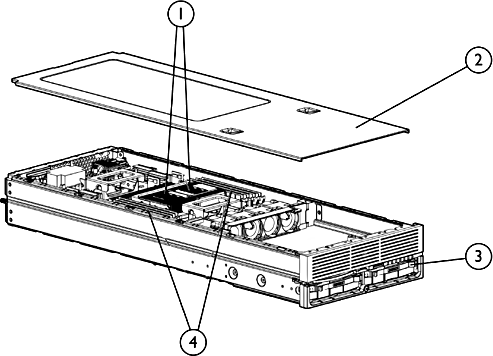

1. Up to two single- or dual-core AMD Opteron™ 800 series processors on secondary side
2. Access Panel
3. Primary Side - ProLiant BL45p
4. Primary Side - ProLiant BL45p

Main Features

• Up to four HP ProLiant BL45p server blades per 6U server blade enclosure
• Performance quad processor server blade designed for enterprise availability and scalability to run existing 32-bit applications, while providing a simplified migration path to 64-bit computing.
• AMD Opteron™ 800 series single-core and dual-core processors (quad capability)
  • Dual-Core: Models 880 (2.4GHz), 875 (2.2GHz), 870 (2.0GHz), 865 (1.8GHz)
  • Single-Core: Models 854 (2.8GHz) and 852 (2.6GHz)
• HP ProLiant BL25/45p Dual Port Fibre Channel Adapter (2-Gb) option for SAN connectivity (shared with BL25p)
• AMD 8131 and 8111 Chipsets
• 1024-MB or 2048-MB PC3200 Registered ECC 400MHz DDR memory, 2 x 1 Interleaved Memory, 16 DIMM slots, expandable to 32GB (using optional PC3200 DDR) or 64GB max (using optional PC2700 DDR) Five total network adapters:
  • Four (4) PCI-X Gigabit embedded ports consisting of two (2) NC7781 and one (1) dual NC7782
  • One additional 10/100 NIC dedicated to iLO Management
• Smart Array 6i - Integrated (on system board) RAID controller with optional battery-backed write cache
• Ultra320 SCSI Drive Cage (standard) supports up to two 1" Wide Ultra320 hot plug hard disk drives
• Integrated Lights-Out (iLO) Advanced Management (ASIC on system board)
• Plugs vertically into 6U enclosure, four (4) BL45p server blades per enclosure
• Integrated Access Tool for server blade management and enhanced server blade documentation including Best Practices and Common Procedures guides
• Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives
