ProLiant DL140 G2 Rackmount Server

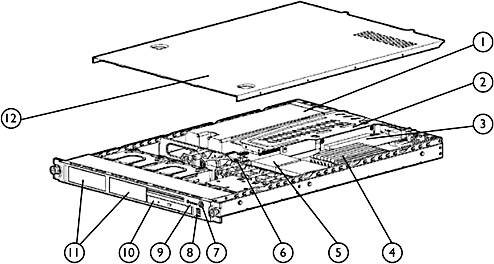

Overview

1. 500W power supply
2. Full-height, full length 133 MHz PCI-X expansion slot which supports PCI-Express with optional riser board
3. Low-profile, half-length 133 MHz PCI-X expansion slot
4. Memory DIMM slots
5. Intel Xeon Processors (Supports up to 2)
6. System fans

7. Power on/off
8. USB port
9. System LEDs
10. Optional CD- or DVD-ROM drive
11. Two Non-Hot Plug SATA OR SCSI 1" Hard Drive Bays
12. Access panel

Main Features

• Supports 1 or 2 Intel Xeon processors:
  • 2.8GHz 1MB Level 2 Cache 800MHz front-side bus supporting Hyper-Threading Technology
  • 3.4GHz 1MB Level 2 Cache 800MHz front-side bus supporting Hyper-Threading Technology
  • 3.6GHz 2MB Level 2 Cache 800MHz front-side bus supporting Hyper-Threading Technology
• Supports both serial ATA (SATA) and SCSI non-hot plug hard drives
• Includes one full-length and one low-profile 64-bit/133MHz PCI-X slot; PCI Express x8 optional on full-length slot
• IPMI 1.5 support at launch with future support for IPMI 2.0
• HP ProLiant Lights Out 100i Remote Management support standard
• 8 DIMM slots, supporting up 16GB DDR2-400MHz memory
• Optional DVD or CD-ROM drive
• Intel Chipset is E7520
• 1-GB of PC2-3200 DDR2 SDRAM running at 400MHz with Advanced ECC capabilities standard, expandable to 16 GB
• Two integrated Dual Broadcom 10/100/1000 5721 NICs (Wake on LAN and PXE capable)
• Integrated 10/100 NIC dedicated for server management
• Support for up to two 1" SATA/SCSI non-hot plug hard drives
• Two PCI-X 64-bit/133MHz PCI slots operating at 3.3 volts (one full-length, one low-profile)
• Internal storage capacity of up to 500 GB (2 x 250-GB non-hot plug 1" SATA HDDs), or 144GB (2x72GB NHP SCSI HDDs)
• Integrated ATI Rage XL with 8MB SDRAM video
• 500W Power Supply (Non-Hot Plug, autoswitching)
• Four USB ports (two rear, two front)
• Integrated Lights Out 100i
• ROM Setup Utility
• Protected by HP Services and a worldwide network of resellers and service providers. One-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives. SATA hard drives have a one-year warranty.
