ProLiant DL145 G2 Rackmount Server

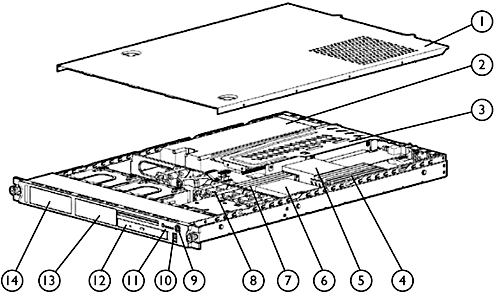

Overview

1. Access Panel
2. 500 Watt Power Supply
3. PCI-X I/O Expansion Assembly with (1) 133MHz Full Height, Full-Length PCI-X slot which supports PCI Express with optional riser board and (1) 133MHz Low-Profile, Half-Length PCI-X Slot.
4. Memory Bank 1A & 1B, supporting up to 8GB PC3200 DDR1 SDRAM
5. Processor 1
6. Processor 2

7. Memory Bank 2A & 2B, supporting up to 8GB PC3200 DDR1 SDRAM
8. System Fans
9. Power ON/OFF Button
10. Front USB Ports
11. System LEDs
12. Optional CD or DVD-ROM Drive
13. Non-Hot Plug SATA OR SCSI Hard Drive Bay
14. Non-Hot Plug SATA OR SCSI Hard Drive Bay

Main Features

• AMD 8132 Chipset for PCI-X support and NVIDIA nForce Professional 2200 MCP for PCI Express
• AMD Opteron 2.2GHz/1M L2, 2.0GHz/1M L2 and 1.8GHz/1M L2 Dual Core with Integrated Memory Controller Running at Core Frequency
• AMD Opteron Model 2.6GHz/1M L2, 2.2GHz/1M L2 and 2.0GHz/1M L2 Single Core with Integrated Memory Controller Running at Core Frequency
• 1 or 2 GB of PC3200 DDR SDRAM running at 400MHz with Advanced ECC capabilities standard (depending on model), expandable to 16 GB
• Integrated Dual Broadcom 10/100/1000 5721 NICs (Wake on LAN and PXE capable)
• Integrated 10/100 NIC dedicated for server management
• Embedded SATA Controller
• Support for up to two 1" SATA/SCSI Non Hot Plug hard drives
• Two PCI-X 64-bit/133MHz PCI slots operating at 3.3 volts (one full-length/full-height, one low-profile); optional PCI Express x16 in place of full-size slot
• Internal storage capacity of up to 500-GB (2 x 250-GB non-hot plug 1" SATA HDDs), or 292-GB (2 x 146-GB NHP SCSI HDDs)
• Optional DVD- or CD-ROM drive
• Integrated NVIDIA GeForce2 GPU with 16MB DDR video memory
• 500W Power Supply (Non-Hot Plug, autoswitching)
• Four USB ports (two rear, two front)
• HP ProLiant Lights Out 100i Remote Management standard
• IPMI 1.5 support at launch with future support for IPMI 2.0
• ROM Setup Utility
• Protected by HP Services and a worldwide network of resellers and service providers. One-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
