ProLiant DL380 G4 Rack-Optimized Server







ProLiant DL380 G4 Rackmount Server




Overview

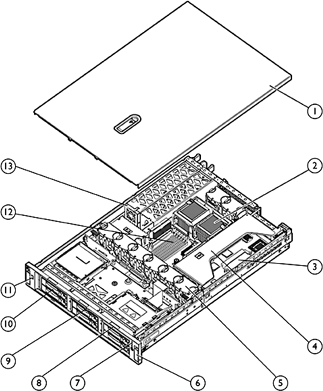

SCSI Model

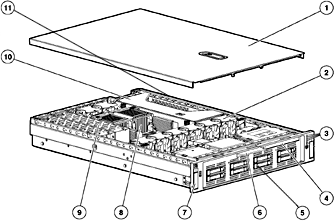

SAS Model


  1. Quick removal access panel
  2. Intel Xeon Processor (High performance models include two processors)
  3. Smart Array 6i Ultra320 array controller with optional 128MB Battery Backed Write Cache (BBWC) or Smart Array P600 controller with standard 256MB Battery Backed Write Cache. (All High performance models include BBWC)
  4. Three PCI-X non-hot plug expansion slots (or optional PCI-X hot plug expansion cage or PCI Express expansion cage)
  5. Hot-plug fans, full redundancy option (All 2M Cache models and High performance models include fully redundant fans)
  6. Quick release lever for fast server access
  7. Front LEDs (show server status) and Unit Identification button/LED (for easy in rack server identification)
  8. 24X Max CD-ROM (High performance models include DVD-ROM drive)
  9. Optional 1.44 MB (3.5") Diskette Drive (High performance models include Diskette Disk Drive)
  10. Support for six 1" Ultra320 SCSI hot plug hard drives (or five hot plug hard drives and one DAT 40 or DAT 72 hot plug tape drive)
  11. USB port (USB 2.0 Support)
  12. Hot plug power supply, redundancy option (High performance models include redundant power supply)
  13. Six PC2-3200R 400MHz DDR2 Sockets


  1. Quick removal access panel
  2. Hot-plug fans, full redundancy option (All 2M Cache models and High performance models include fully redundant fans)
  3. Front LEDs (show server status) and Unit Identification button/LED (for easy in rack server identification)
  4. Hot-plug fans, full redundancy option (All 2M Cache models and High performance models include fully redundant fans)
  5. Support for eight universal small form factor hot plug hard drives
  6. Optional 1.44 MB (3.5") Diskette Drive (High performance models include Diskette Disk Drive)
  7. Quick release lever for fast server access
  8. Intel Xeon Processor (High performance models include two processors)
  9. Hot plug power supply, redundancy option (High performance models include redundant power supply)
  10. Three PCI-X non-hot plug expansion slots (or optional PCI-X hot plug expansion cage or PCI Express expansion cage)
  11. Smart Array P600 controller with standard 256MB Battery Backed Write Cache. (All High performance models include BBWC)









Main Features



  • 64-bit Intel® Xeon™ processors (up to 3.8 GHz), a 800MHz Front Side Bus and 1MB or 2MB of L2 cache (two processors included in High Performance models)
  • High performance models available that include the latest performance technologies and enterprise class availability features pre-installed for convenience and value
  • Intel E7520 Chipset
  • 1GB PC2-3200R 400MHz DDR2 Memory with online spare capabilities (2GB included in High Performance model)
  • Support for dual-rank 400MHz DDR2 memory
  • SAS (Serial attached SCSI) models include the Smart Array P600 Performance SAS Array Controller with 256MB Battery-Backed Write Cache. SCSI models include the integrated Smart Array 6i Ultra 320 Array Controller with optional 128MB of Battery Backed Write Cache (BBWC standard on all high performance models)
  • (8) small form factor hot-plug drive bays or (6) hot-plug U320 SCSI drive bays, SCSI models have (1) 1.6" bay that supports a hot-plug DAT tape backup drive
  • HP Power Regulator for ProLiant, delivering server level, policy based power management with industry leading energy efficiency and savings on system power and cooling costs
  • Integrated Lights-Out support for Power Regulator for ProLiant and introducing support for the draft DMTF System Management Architecture for Server Hardware Command Line Protocol standard
  • Internal hot plug capacity 1.8 TB standard (6 x 300 GB 1" HD)
  • Hot Plug Fans with optional full redundancy (Included in 2M Cache and High performance models)
  • Hot Plug Power Supply with optional redundancy (Included in High performance models)
  • Tool-less access to all system components for easy in rack serviceability
  • Three 64-bit PCI-X slots (2 available on SAS models), including two non-hot plug 100MHz slots and one non-hot plug 133MHz slot or optional PCI-X Hot-plug cage or Optional PCI Express Non-hot plug Cage (U320 SCSI Models only)
  • Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network adapter
  • Optional dual channel drive backplane (2/4 split) for U320 SCSI models (Included in SCSI High Performance Models)
  • Optional dual channel drive backplane (2/4 split) (Included in High Performance Models)
  • Optional floppy disk drive (Included in High Performance Models)
  • USB 2.0 support, one port up front and two ports in back
  • Quick Deploy Rail System includes sliding universal rails, an ambidextrous cable management arm and quick release levers for fast and easy serviceability and in-rack tool-less access to major components
  • High performance models available fully loaded for convenience
  • Integrated Lights-Out (iLO) Standard Management on system board
  • Support for new iLO Shared Network Port enables access to the iLO management processor through one of the embedded system NICs
  • Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU), HP System Insight Manager, Status LEDs including system health and UID and SmartStart
  • Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives. SATA hard drives have a one-year warranty.
