ProLiant DL385 Rackmount Server

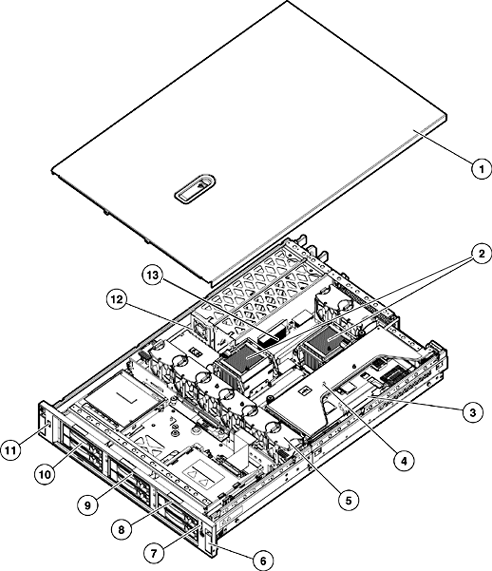

Overview

1. Quick removal access panel
2. AMD 200 series Opteron processor
3. Smart Array 6i Ultra320 array controller with optional 128MB Battery Backed Write Cache (BBWC) OR P600 SAS controller in a PCI slot for SAS models
4. Three PCI-X non hot plug expansion slots
5. Hot-plug fans, full redundancy option
6. Quick release lever for fast server access
7. Front LEDs (show server status) and Unit Identification button/LED (for easy in rack server identification)

8. 24X Max CD-ROM
9. Optional 1.44 MB (3.5") Diskette Drive
10. Support for up to six 1" Ultra320 SCSI hot plug hard drives or for five hot plug hard drives and one DAT 40 or DAT 72 hot plug tape drive OR on SAS Model support up to eight Small Form Factor (SFF) SAS drive (Internal tape is not supported on SAS models)
11. USB port (USB 1.1 Support)
12. Hot plug power supply, redundancy option
13. Eight PC3200 400MHz DDR Sockets

Main Features

• AMD chipset
• 1 GB PC3200 400MHz DDR Memory (2 x 512 MB)
• Hot Plug Fans with optional full redundancy
• Hot Plug Power Supply with optional redundancy
• Tool-less access to all system components for easy in rack serviceability
• Three available 64-bit PCI-X slots, including two non-hot plug 100MHz slots and one non-hot-plug 133MHz slot
• NC7782 Dual Port PCI-X Gigabit Server Adapter (embedded)
• Optional dual channel drive backplane (2/4 split)
• Optional floppy disk drive
• Quick Deploy Rail System includes sliding universal rails, an ambidextrous cable management arm and quick release levers for fast and easy serviceability and in-rack tool-less access to major components
• Integrated Lights-Out (iLO) Standard Management on system board
• Support for new iLO Shared Network Port enables access to the iLO management processor through one of the embedded system NICs
• Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU), HP System Insight Manager, Status LEDs including system health and UID and SmartStart
• Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives. SATA hard drives have a one-year warranty.

SCSI Models

• Up to two AMD Opteron processors model 280 (2.4 GHz dual-core), 275 (2.2 GHz dual-core), 270 (2.0 GHz dual-core), 265 (1.8 GHz dual-core), 254 (2.8 GHz single-core), 252 (2.6 GHz single-core) and 250 (2.4 GHz single-core) with 1MB L2 cache per core
• Integrated Ultra320 Smart Array 6i Controller with 64MB RAM and optional 128MB Battery-Backed Write Cache (BBWC) Enabler option kit
• Support for up to six 1" Ultra320 SCSI hot plug hard drives or for five hot plug hard drives and one DAT hot plug tape drive
• Internal hot plug capacity 1.8 TB standard (6 x 300 GB 1" HD)

SAS Models

• Up to two AMD Opteron processors model 280 (2.4GHz dual-core), 275 (2.2GHz dual-core) and 265 (1.8GHz dual-core with 1MB L2 cache per core
• Smart Array P600 controller in PCI slot with 256MB battery-backed write cache
• Support for up to eight SFF SAS hot plug hard drives (internal tape not supported)
• Internal hot plug capacity 576 GB standard (8 x 72 GB 1" HD)
