ProLiant DL560 Rackmount Server

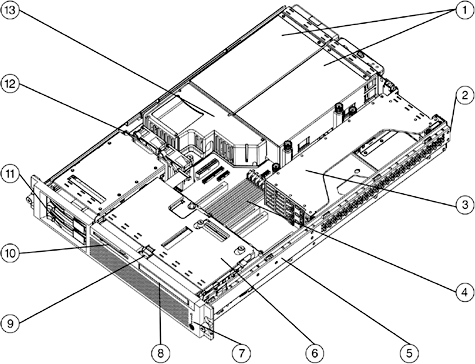

Overview

1. Dual 550W Hot Plug Redundant Power
2. 2U (3.5" Height) rack form factor
3. PCI-X Riser Cage, Three 64-bit PCI-X slots
4. Six memory DIMM slots
5. Tool-less "Snap in" Rail Solution
6. Hood
7. LEDs

8. Slimline Removable media Bay with 24x CD-ROM installed
9. Hood latch (accesses processors and fans)
10. 1.44 MB Diskette Drive
11. Wide Ultra3 SCSI drive cage for two hot plug hard drives or one DAT hot plug tape drive (plus 1 hard drive)
12. Hot Plug Fans
13. DC Power Converter Module

Main Features

• Intel Xeon Processors MP at 3.0 GHz/4MB, 2.7 GHz/2MB, 2.2 GHz/2MB, 2.8 GHz/2MB, 2.5 GHz/1MB, 2.0 GHz/1MB (Expandable to 4 processors)
• The HP ProLiant DL560 delivers extraordinary performance and maximum power efficiency in an ultra dense, rack optimized form factor ServerWorks Grand Champion-LE chipset
• 2x1 interleaved memory, 200MHz DDR SDRAM Memory (PC2100 Registered SDRAM with Advanced ECC functionality)
• 1024 MB or 512 MB (depending on model) standard memory, expandable to 12 GB
• HP Advanced Memory Protection
• Two, full length 64-bit/100 MHz Non-Hot Pluggable PCI slots, one full length 64-bit/133 MHz Non-Hot Pluggable
• Integrated Lights-Out Standard Management (iLO) on system board
• Two NC7781 PCI-X Gigabit NICs (embedded)
• Integrated Smart Array 5i Plus Controller (Ultra3) with 64-MB total memory on 5i Plus Memory Module
• Battery-Backed Write Cache Enabler module on all 2P models (optional on 1P model)
• Internal Hot Plug Drive Storage of up to 600 GB (2 x 300 GB 1" Ultra320 hard drives)
• Redundant Cooling Zones for major subsystems (Memory, I/O, CPUs) assure 7x24 cooling
• Toolless and virtually cable-less internal design
• Rapid Deployment racking solution (rack rails and cable management)
• Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
