ProLiant DL580 G2 Rackmount Server

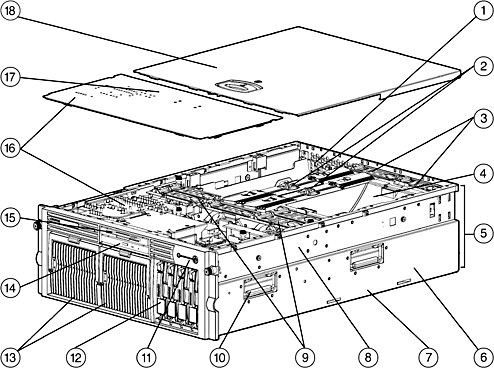

Overview

1. Six 64-bit/100-MHz PCI-X I/O Slots (Four Hot Plug, two Non-Hot Plug)
2. Dual Memory Expansion Boards (8 DIMM slots each - one board standard on all models, 2nd board is optional)
3. Hot Plug Redundant Fans
4. Processor Air Baffle
5. 4U (7" Height) Rack Form Factor
6. Up to 4 Intel Processors MP
7. Integrated Smart Array 5i Plus Controller (Battery Backed Write Cache standard on all 2P models, optional on 1P model)
8. Tool-less "Snap In" rail solution
9. Additional Hot Plug Redundant Fans
10. Server Lifting Handle

11. Front Panel LED Display (internal and external health, Unit ID light) and Power Button
12. Wide Ultra3/U320 Duplex Drive Cage (can be Simplex configured)
13. Dual 800-Watt Hot Plug Redundant Power Supplies (low line or high line), standard on all 2P models (one ships standard on 1P model, requires optional RPS for redundancy)
14. Slimline Drives: 24X (slimline) CD-ROM IDE Drive
15. Slimline Drives: Ejectable 1.44 MB (slimline) Diskette Drive
16. QuickFind Diagnostic Display (viewable through Front Access Panel)
17. Removable Front Access Panel
18. Removable Rear Access Panel

Main Features

• Delivering maximum performance and unprecedented availability in a flexible, rack optimized form factor
• Intel Xeon Processors MP
• ServerWorks Grand Champion-HE chipset
• 4x1 interleaved memory, 200MHz DDR SDRAM Memory (PC1600 Registered SDRAM with Advanced ECC functionality)
• 2048 MB (2P Models) or 1024 MB (1P Model) standard memory, expandable to 32 GB
• HP Advanced Memory Protection (Online Spare, Single Board Mirrored Memory, Hot Plug Mirrored Memory, Hot Add Memory)
• Six, full length 64-bit/100 MHz PCI-X slots, 4 Hot Pluggable
• Integrated Lights-Out Standard Management (iLO) on system board
• Integrated NC7770 PCI-X Gigabit Server Adapter or Integrated HP NC7170 Dual-Port PCI-X 1000T Gigabit Server Adapter in a slot Depending on model)
• Integrated Smart Array 5i Plus Controller (Dual Channel, Ultra3) with 64-MB total memory on 5i Plus Memory Module
• Battery-Backed Write Cache Enabler module on all 2P models (optional on 1P model)
• Internal Hot Plug Drive Storage of up to 1.20 TB (4 x 300 GB 1" Ultra320 hard drives) or one DAT hot plug tape drive and two hot plug hard drives
• Redundant Cooling Zones for major subsystems (Memory, I/O, CPUs) assure 7x24 cooling
• Toolless and virtually cable-less internal design
• Innovative diagnostic lighting (QuickFind Diagnostic Display) for rapid response to service events
• Rapid Deployment racking solution (rack rails and cable management)
• Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
