ProLiant DL585 Rackmount Server

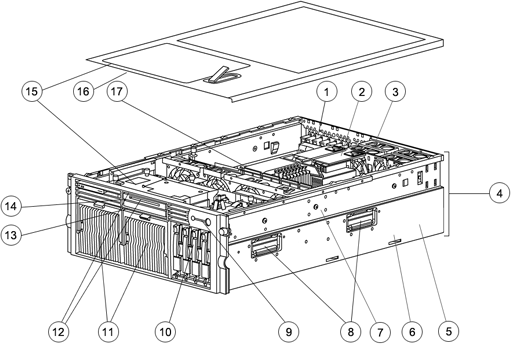

Overview

1. Eight 64-bit PCI-X I/O Slots (Six 100 MHz, two 133 MHz)
2. 2 or 4 processors/memory boards
3. 2 or 4 AMD Opteron 800 Series Processors
4. Up to 128 GB of PC2700 DDR SDRAM with Advanced ECC, running at 266 MHz, 48 GB of PC2700 running at 333 MHz or 32 GB of PC3200 running at 400 MHz
5. Hot Plug Redundant Fans (standard)
6. 4U (7" Height) Rack Form Factor

7. Tool-less "Snap In" rail solution
8. Server Lifting Handle
9. Front Panel LED Display (internal and external health, Unit ID light) and Power Button

10. Ultra320 Drive Cage, capable of simplex or duplex configuration, upgradeable to SFF SAS drive technology
11. Dual 870-Watt Hot Plug Redundant Power Supplies (hi/lo line auto-sensing
12. Two Universal Media Bays: 24X CD-ROM IDE and 1.44 MB Diskette Drive (standard)
13. Multi-Bay floppy and CD-ROM drives, standard on most models
14. QuickFind Diagnostic Display (viewable through the Top Access Panel)
15. Removable Top Access Panel
16. Integrated Lights-Out (iLO)- not shown
17. Dual Port NC7782 embedded NIC - not shown

Main Features

• Delivering maximum performance in a versatile, rack optimized form factor
• AMD Opteron 800 series 2.4 GHz, 2.2 GHz or 1.8 GHz dual core or 2.8 GHz, 2.6 GHz, 2.4 GHz or 2.2 GHz single core processors (two or four supported)
• AMD Opteron 8000 chipset supporting up to 1 GHz HyperTransport
• 4 GB of PC3200 DDR SDRAM, running at 400 MHz, expandable to 32 GB, or 2 GB of PC2700 DDR SDRAM, running at 333 MHz, expandable to 128 GB with support for PC2700 DDR with Advanced ECC SDRAM (48 GB running at 333 MHz or 128 GB running at 266 MHz)
• Eight full length 64-bit PCI-X slots, 6 100 MHz, 2 133 MHz
• Integrated Lights-Out Standard Management (iLO) on system board
• Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network adapter
• Integrated Smart Array 5i Plus Controller (Dual Channel, Ultra3) with 64 MB total memory on 5i Plus Memory Module
• Transportable Battery-Backed Write Cache Enabler module
• Multi-Bay floppy and CD-ROM drives
• Choice of Internal Hot Plug Drive Storage; Up to 1.20 TB (4 x 300 GB Ultra320 SCSI 1" hard drives) or up to 582 GB (8 x 72.8 GB SAS SFF hot plug drives; one DAT hot plug tape drive and two hot plug hard drives
• Redundant hot plug power supplies and fans
• Tool-less and virtually cable-less internal design
• Innovative diagnostic lighting (QuickFind Diagnostic Display) for rapid response to service events
• Rapid Deployment racking solution (rack rails and cable management)
• Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives. SATA hard drives have a one-year warranty.
