ProLiant DL740 Rackmount Server

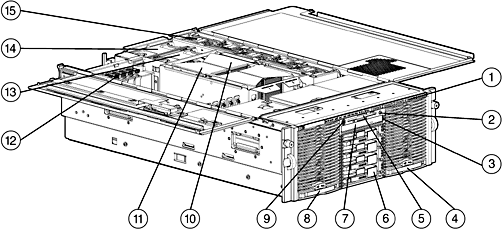

Overview

1. LED Diagnostic Display (system health and DIMM status)
2. Unit ID (UID) LED Switch (front and rear)
3. Universal Media Bay Ejector Button
4. Redundant Hot Plug Power Supply #2
5. 1.44MB Diskette Drive
6. Ultra3 Hard Disk Drive Bays (up to four)
7. CD/DVD-ROM Drive in Universal Media Bay
   (hot pluggable)

8. Redundant Hot Plug Power Supply #1
9. System Power LED Switch
10. Processor Board #2
11. Processor Board #1
12. Six 100MHz/64-bit PCI-X slots
13. Redundant Hot Plug Fan #2
14. Redundant Hot Plug Fan #1
15. Hot Plug RAID Memory Cartridges (five total)

Main Features

• Uncompromising 8-way performance and availability in an ultra dense, 4U form factor
• Intel Xeon Processor MP 3.0 GHz/4MB, 2.7 GHz/2MB, 2.2 GHz/2MB Processors (eight processor capability)
• HP developed F8 chipset
• 133 MHz SDRAM Memory, expandable to 64 GB addressable memory
• HP Hot Plug RAID Memory Technology
  • Hot Add, Hot Replace, and Hot Upgrade
  • Uses industry standard ECC-protected memory
• Six 64-bit/100MHz PCI-X slots, all hot pluggable
• Integrated Lights-Out Standard Management (iLO) on system board
• Two NC7781 PCI-X Gigabit NICs (embedded)
• Integrated Smart Array 5i Controller (Ultra3 support) (supports RAID 0, 1, 1+0, and 5 across internal hard disk drives)
• Internal Hot Plug Drive Storage of 1.20 TB (4 x 300 GB Ultra320 1" hard drives running at Wide Ultra3) or one DAT hot plug tape drive and two hot plug hard drives
• Tool less and modular chassis for enhanced serviceability
• Innovative diagnostic lighting for rapid response to service events
• Unit ID (UID) lighting, front and rear
• Front bezel system health/RAID memory LEDs
• Two 1100W/800W hot plug redundant power supplies standard
• Two hot plug redundant system fans standard
• Rapid deployment racking solution (rack rails and cable management)
• Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
