ProLiant DL760 G2 Rackmount Server

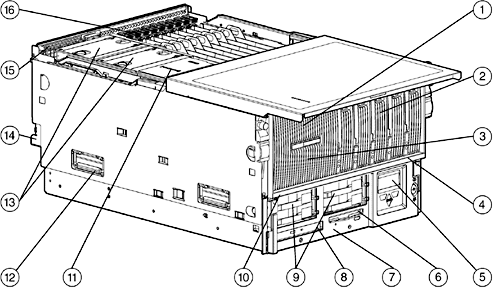

Overview

1. Processor/Memory Module
2. Hot Plug RAID Memory Cartridge
3. Four or Eight Intel Xeon Processors MP with fault tolerant processor power modules
4. DIMM Status LED
5. Integrated Management Display
6. Integrated 1.44-MB Diskette Drive
7. Media Module
8. Integrated Slimline CD/DVD-ROM Drive, (8X speed for DVD and 24X speed for CD)

9. Four 1" Ultra320 SCSI Hot Plug Drive Bays (running U3 speeds)
10. Attention LED Indicators
11. System Interconnect Status Indicator
12. Integrated Lift Handles
13. Redundant Hot Plug Fans
14. Two Redundant Hot Plug Power Supplies
15. I/O Modules
16. Eleven 64-bit PCI-X and PCI I/O expansion slots, all Hot Plug (10 x 100 MHz PCI-X and 1 x 33 MHz PCI)

Main Features

• Intel Xeon Processor MP 3.0 GHz/4MB, 2.7 GHz/2MB, 2.2 GHz/2MB Processors (eight processor capability)
• Hot Plug RAID Memory using XOR & ECC-protected memory and user-friendly diagnostics
• The ultimate high-density data centre server delivering breakthrough 8-way scalable performance for 7 x 24 multi-server rack environments
• Tool less chassis for enhanced serviceability
• 133 MHz SDRAM DIMM memory that is expandable to 64 GB addressable memory (+16GB for full redundancy)
• Integrated Smart Array 5i Controller (Ultra3 support) (supports RAID 0, 1, 1+0, and 5 across internal hard disk drives) (One Internal Channel for RAID Capability for internal drives and one External Channel for tape support only)
• (10) 64-bit/100MHz capable PCI-X slots & (1) 64-bit/33-MHz PCI slot
• Full RILOE II support
• Integrated NC7770 PCI-X Gigabit Server Adapter or Integrated HP NC7170 Dual-Port PCI-X 1000T Gigabit Server Adapter standard depending on the model
• Internal Hot Plug Drive Storage of 1.20 TB (4 x 300 GB Ultra320 1" hard drives running U3) or one DAT hot plug tape drive and two hot plug hard drives
• Robust set of hot plug and redundant features including Hot Plug RAID Memory, PCI/PCI-X Hot Plug, hot plug drive bays, redundant hot plug fans and power supplies and support for redundant NICs, ASR-2, Remote-Flash Redundant ROM
• Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
