ProLiant
DL350 G4 Full Tower Server |
|
| |

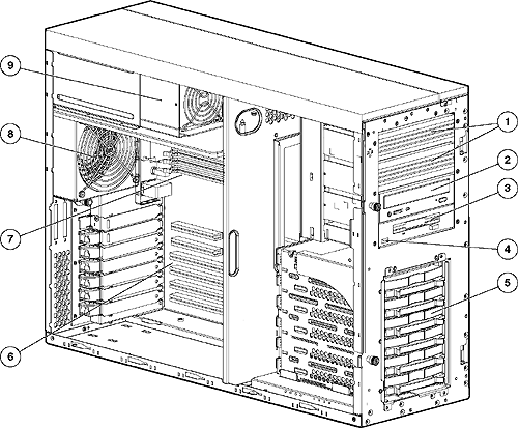

Overview |
|
| |
|
|
| |
- Two Available Removable Media Bays
- 48X Max IDE CD-ROM Drive
- 1.44 Diskette Drive
- USB Port
- Six Hot Plug Drive Bays (shown above) or Four Non Hot Plug SCSI Drive Bays (not shown)
|
- Six Expansion Slots (four PCI-X, two PCI-Express)
- Four DIMM sockets for up to 8GB of memory
- System Fan (an optional redundant system fan is available)
- Power Supply
NOTE: In hot plug models, an optional 2nd power supply is available for hot-plug 1+1 redundancy
|
|
| |
Main Features |
|
| |
- Intel Xeon 3.0 GHz, 3.2 GHz, or 3.4 GHz processors (dual processor capability) with 1MB level 2 cache standard. Processors include support for Hyper-Threading and Extended Memory 64 Technology (EM64T)
- Intel® E7520 chipset
- 800-MHz Front Side Bus
- Integrated Dual Channel Ultra320 SCSI Adapter
- Smart Array 641 Controller (standard in Array Models only)
- NC7761 PCI Gigabit NIC (embedded)
- Up to 1 GB of PC2700 DDR SDRAM with Advanced ECC capabilities (Expandable to 8 GB)
- Six expansion slots: one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, one 64-bit/66-MHz PCI-X, one x4 PCI-Express, and one x8
PCI-Express
- New HP Power Regulator for ProLiant delivering server level, policy based power management with industry leading energy efficiency and savings on system power and cooling costs
- Three USB ports
- Support for Ultra320 SCSI hard drives (six hot plug or four non-hot plug drives supported standard, model dependent)
- Internal storage capacity of up to 1.8 TB; 2.4 TB with optional 2-bay hot plug SCSI drive
- 725W Hot-Plug Power Supply (standard, most models); optional 725W Hot-Pluggable Redundant Power Supply (1+1) available. Non hot plug SCSI models include a 460W non-hot plug power supply.
- Tool-free chassis entry and component access
- Support for ROM based setup utility (RBSU) and redundant ROM
- Systems Insight Manager, SmartStart, and Automatic Server Recovery 2 (ASR-2) included
- Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives.
|
|
| |
