ProLiant DL370 G4 Full Tower Server

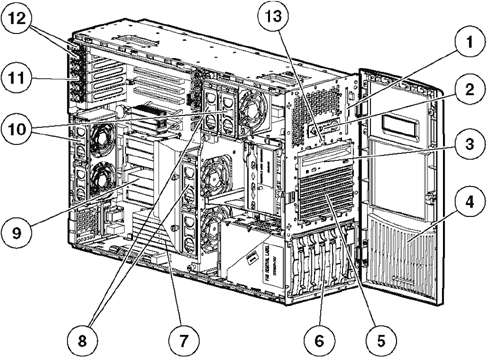

Overview

1. 1.44 MB Diskette Drive
2. Front Panel LEDs (show server status)
3. 48X MAX CD-ROM
4. Front Bezel
5. Removable Media Bays
6. Six Hot Plug Ultra320 Drive Bays
7. 8 PC2-3200R Memory Slots

8. Hot Plug Fans (standard)
9. Intel Xeon Processors
10. Hot Plug Redundant Fans (Optional)
11. 2 PCI-Express Non-hot plug slots
12. 4 PCI-X 64-Bit/100-MHz Non-hot plug slots
13. USB 2.0 (on the front)

Main Features

• Intel Xeon Processors with 2MB Level 2 cache offer blazing performance increases: 3.8 GHz, 3.6 GHz, 3.4 GHz, 3.2 GHz, 3.0 GHz and 2.8 GHz models available
• Systems support up to two Intel Xeon Processors with Hyperthreading Technology (2 processors standard on all High Performance models)
• Integrated Dual Channel Ultra320 SCSI Adapter (Smart Array 6402 controller with 128MB battery backed write cache is standard on Ultra320 High Performance models. Smart Array P600 Performance SAS Array Controller including 256MB Battery-Backed Write Cache is standard on SAS Array and SAS High Performance models.)
• (8) small form factor (2.5") hot-plug drive bays for serial models or (6) hot-plug Ultra320 SCSI drive bays (2-bay Ultra320 drive cage to support a total of 8 Ultra320 hot plug drives included on Ultra320 High Performance models)
• Powerful Integrated Lights-Out remote management technology embedded
• HP Integrated Lights-Out firmware includes HP Power Regulator for ProLiant - server level, policy based power management for industry leading energy efficiency and savings on system power and cooling costs. Also, introducing support for the draft DMTF System Management Architecture for Server Hardware Command Line Protocol standard
• Maximum 16GB of 2-way interleaved PC2-3200R 400MHz DDR2 memory with Advanced ECC capabilities; 1GB (2x512MB) standard, 2GB (2x1024MB) standard on all High Performance models
• 6 expansion slots - 2 PCI-Express x4 and 4 PCI-X 64-Bit/100-MHz (3 PCI-X slots and 2 PCI-Express slots available on all High Performance and Array models)
• Optional Hot plug redundant power supplies and cooling fans (Hot plug redundant fans and power supplies included on all High Performance models)
• NC7781 PCI-X Gigabit NIC (embedded)
• 5U Tower and Rack Models
• USB 2.0 support, one port up front and two ports in back
• Optional duplex drive backplane splits the standard Ultra320 drive cage (2:4) into two separate data channels
• Quick Deploy Rail System includes sliding universal rails, an ambidextrous cable management arm and quick release levers for fast and easy serviceability and in-rack tool-less access to major components
• Preconfigured High Performance models save valuable deployment time at a discounted bundle price
• Tool-free serviceability
• Diagnostic and Unit ID LEDs
• HP Systems Insight Manager
• SmartStart 7.1+
• Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives. SATA hard drives have a one-year warranty.
