ProLiant DL570 G3 Full Tower Server

Overview

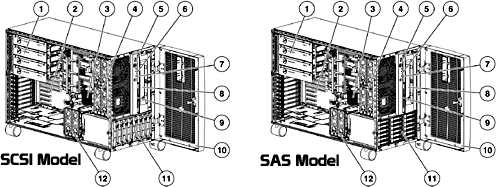

1. Four Memory Boards
2. Ten PCI slots
3. Four Intel Xeon Processors
4. Four Hot Plug Fans
5. USB (on front)
6. Front Panel LEDs - Diagnostic Lighting
7. High Speed IDE Slimline DVD Drive

8. 5.25-inch Removable Media Bay (optional)
9. 1.44-MB Diskette Drive (optional)
10. Front Bezel
11. Ultra320 Hot Plug Drive Bays (8+2 x1" Standard) or Hot Plug Drive SFF SAS Bays (18 Standard)
12. Two Hot Plug Fans

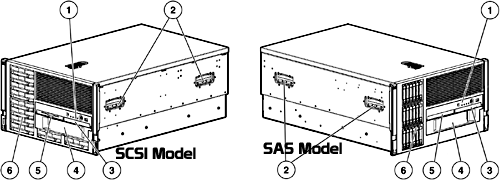

1. Front Panel LEDs - Diagnostic Lighting
2. Rack handles
3. High Speed IDE Slimline DVD Drive
4. 5.25-inch Removable Media Bay (optional)

5. 1.44-MB Diskette Drive (optional)
6. Ultra320 Hot Plug Drive Bays (8+2 Standard) or Hot Plug Drive SFF SAS Bays (18 Standard)

Main Features

• Intel® Xeon MP Processors 3.33 GHz/8MB, 3.00 GHz/8MB, 2.83 GHz/4MB, 3.66 GHz/1MB or 3.16 GHz/1MB with Intel® E8500 chipset
• 667MHz dual independent front-side bus
• Denser form factor - 6U rack and tower models
• Maximum 48 GB of 2-way interleaved PC2-3200R 400MHz DDR-II memory with Advanced ECC capabilities; 1 GB (2 x 512 MB) standard, 2 GB (4 x 512 MB) standard on rack optimized 8MB models
• Powerful Integrated Lights-Out remote management technology embedded as well as support for iLO Shared Network Port, which enables access to the iLO management processor through one of the embedded system NICs
• Embedded NC7782 Dual Port PCI-X 10/100/1000 Gigabit NIC
• Advanced Memory Protection now including Hot-plug RAID Memory
• Up-front USB port
• Tool-free, spring loaded snap-on slide rails designed to accommodate both round and square hole racks
• Four 64-bit/100 MHz PCI-X slots, two full length and two half length
• Two, full length 64-bit/133 MHz PCI-X slots, Hot Pluggable
• Four, full length x4 PCI-Express slots
• SCSI models ship with the Integrated Dual Channel Ultra320 SCSI Adapter. SAS Models ship with the Smart Array P600 Controller and the existing embedded SCSI controller can be used for a tape drive in the removable media bay or external storage connect.
• Ultra320 compatible SCSI Drive Cage standard (standard duplex backplane 8+2) in SCSI models or SFF SAS Drive Cage standard (18 drives) in SAS models
• Internal mass storage capacity up to 3.00 TB (8 x 300 GB + 2 x 300 GB 1" hot plug drives) or 1.3 TB (18 x hot plug SFF SAS drives)
• New Quick Find Diagnostic Display provides location of degraded component
• Integrated Remote Console and Automatic Server Recovery-2 (ASR-2)
• Optional hot plug redundant power supplies and cooling fans (On rack optimized 8MB models, hot plug redundant fans and power supplies standard)
• Industry-standard PCI Hot Plug with Push Button Functionality
• Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, on-site limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SCSI hard drives. SATA hard drives have a one-year warranty.
